Product Overview

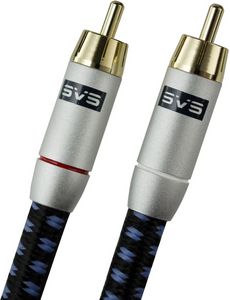

Durable And Truthful RCA Subwoofer Cables
Multi-strand 99.9% pure copper conductors deliver ultra-high bandwidth and low capacitance for truthful audio signal rendering. SVS SoundPath subwoofer cables have a substantial feel with braided cotton sheath for added protection and style. All for a value only SVS can offer.
Available in convenient lengths ranging from one to 15 meters, SVS SoundPath is ideal for getting the best subwoofer cable connection possible.
Cable - Materials of Construction:
All new premium cotton braided jacket – attractive, durable, outermost boundary of five-layer dielectric insulation system
High density 7.0mm PVC outside core dielectric – part of five-layer insulation system
1.6mm HDPE inside core dielectric – part of five-layer insulation system, shields each unique conductor
PET Mylar shield layer – part of five-layer insulated system, shields and binds internal structure
Directional shield layer is a spiral braid of premium grade Aluminum foil and 56 strands of 99.99% OFC tinned copper Shielding – critical part of five-layer insulation system. Soldered to ground terminal at the source side helps reduce EMI and RF noise between electronics.
Total five-layer isolation system rejects electromagnetic (EM) and radio frequency (RF) interference.
The Dual balanced conductors are made from 14 strands of 99.99% OFC stranded copper conductors, and individually isolated in independent HDPE dielectric jackets - allow consistent signal flow, high signal purity, and minimize signal loss.
Nominal cable diameter: 7mm
RCA Connector - Materials Of Construction:
Precision soldered with high grade lead-free solder – Durable and consistent electrical contacts with consistent signal flow.
24K gold plated brass conductor pin – effective electrical contact and signal flow.
24K gold plated brass split grounding body – tight fit with consistent electrical contact for stable grounding.
Precision machined and anodized aircraft grade aluminum shell with white and red marking bands – Stylish and durable body with a great feel and easy handling. Red and White marking bands for easy Left and Right designation.
Center Pin and Outer Ring: Gold-plated brass for optimum signal quality and integrity.
Electrical Properties:
Conductor DCR = 77 mΩ/meter
Shield DCR: 30 mΩ/meter
Nominal Impedance: 110Ω. Cable and RCA connectors are impedance-matched to minimize Voltage Standing Wave Ratio (VSWR) and Return Loss.
Nominal Capacitance: 39 pF/meter @ 1kHz
Rated Bandwidth: DC-5.0 MHz (3M cable) with ≤1.09 VSWR and ≥27dB Return Loss
