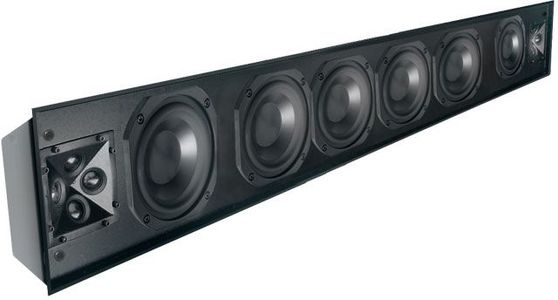

The QX5LR-S speaker raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The LR-S format of this bar features two individual systems to provide left, right, and sub channels in a single enclosure. Perfect for any home entertainment system, this versatile Sound Bar can be custom built to match each individual TV, providing seamless integration and elegant design as well as high quality audio. Equipped with high output, low-profile woofers and the signature ultra-wide dispersion QX style quad aluminum tweeter array, this low-visibility Sound Bar packs a powerful punch in a small package. Capable of reaching frequencies across a broad range down to below 45Hz, the QX5LR-S offers full range response with an impressive 89dB sensitivity.
The in-wall cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a matching borderless stainless steel perforated grille which sits only 3/16” (5mm) off the wall or completely flush with the addition of a pre-construction board, this speaker is both sturdy and reliable, and can be elegantly integrated into each system, providing a subdued visual effect, designed to be as unobtrusive as possible.
Specifications
- Frequency Response: 45Hz-24kHz
- Nominal Impedance: 4/8 ohms
- Sensitivity: 89dB
- Woofer: 5.25" Aluminum Woofer
- Tweeter: 0.75 Aluminum Quad Tweeter Array
- Height: 8.125 in (206.38 mm)
- Width: Custom Sized
- Depth: 3.88 in (98.55 mm)
- Grille Height: Proud (3/16") or Flush Options Available
- Preconstruction Board (PCB): QX5LRSPB
- Flush Mount Preconstruction Board (PCBF): QX5LCSPBF
Recommended Power Range:
- L/R: 25-100W per channel
- Sub: 50-150W
*Driver count and impedance are configuration dependent
