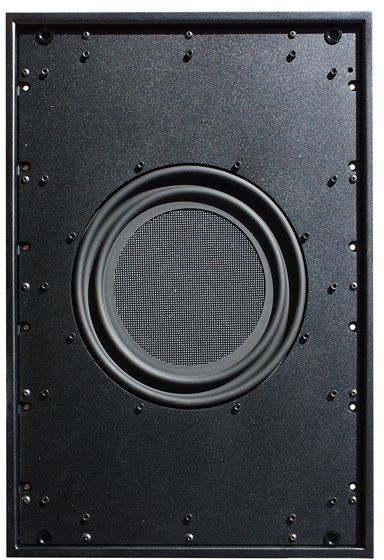

James Loudspeaker® QX Series 10" White In-Wall Subwoofer
At a Glance
The QX1010 is a compact QX style in-wall subwoofer, using the same mounting system as other QX style speakers. With a single 10” active woofer, this sub offers a great solution for smaller footprint subwoofers while still delivering booming bass.
Proposition 65 Warning for California Residents
Construction
| Woofer Composition | Aluminum Cone |
|---|
Other
| Sold As | Each |
|---|
Specifications
| Speaker Type | Subwoofer Speaker |
|---|
General Specs
| Product Weight (lbs.) | 21 |
|---|---|
| Color | White |
| Depth (in.) | 4.13 |
| Width (in.) | 14.32 |
| Height (in.) | 20.32 |
| Woofer Size | 10" |
| Speaker Type | Powered Subwoofers |
| Maximum Power Handling (Watts) | 500 |
| Color Finish Name | White |
| Speaker Size | 10 |
| RMS Power Handling (Watts) | 500 |
| Subwoofer Size | 10" |
James Loudspeaker® QX Series 10" White In-Wall Subwoofer
Model #: QX1010
Call for Best Price
At a Glance
Get to know this product.
The QX1010 is just one option in James Loudspeaker’s series of in wall subwoofers. These unique subs are designed to offer smooth, deep bass to compliment any audio system while maintaining a discrete and space-saving design which doesn’t break the budget. The QX1010 is a compact QX style in-wall subwoofer, using the same mounting system as other QX style speakers. With a single 10” active woofer, this sub offers a great solution for smaller footprint subwoofers while still delivering booming bass. Designed for mounting behind displays, this sub is extremely versatile and easily hidden.
The QX1010 is constructed entirely from aircraft grade aluminum for strength, sonic performance, and durability. Available for marine and outdoor use with the addition of a severe powder coat. Complete with a custom colored, perforated aluminum grille which sits only 3/16” off the wall or completely flush with the addition of a custom James pre-construction board, this sub can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible.
Specifications
Frequency Response: 27-140Hz +/-3dB
Nominal Impedance: 8 ohms
Sensitivity: 88dB 2.83V/1m
Cutout: 13.625" x 19.750"
Recommended Power Range: 150 - 500W
Woofer: 10" (254mm) Laminated Aluminum Honeycomb
Enclosure: Aircraft Marine Grade Aluminum
Finishes : White Paintable Grille
Height: 20.32 in (516.13 mm)
Width: 14.32 in (363.73 mm)
Depth: 4.125 in (104.77 mm)
Required Mounting Depth: 3.875 in (98.42 mm)
Grille Height: 20.32 in (516.13 mm)
Grille Width: 14.32 in (363.73 mm)
Net Weight: 21 lbs (9.53 kg)
Recommended Amplifier: M1000
Preconstruction Board (PCB): QX1010PB
Flush Mount Preconstruction Board (PCBF): QX1010PBF
