Product Overview

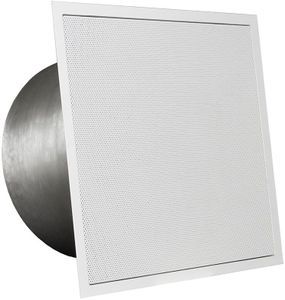

The FXCQ820S in-ceiling loudspeaker from James provides performance that is second to none and features a sleek, modern appearance with a 3/8” (9.5mm) wide aluminum flange which is only 0.09” (2.3mm) thick, making the loudspeaker appear almost flush when mounted. The 8” woofer is James designed with an aluminum cones and Santoprene surround to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promising to deliver audiophile-quality where it counts. The enclosure is constructed with aircraft grade 5052 aluminum and includes a square white paintable aluminum grille. The FXCQ820S has an impressive 93dB sensitivity with bass down to below 60Hz. A multi-element network blends the highs and lows into a smooth and wide response.
Specifications
Frequency Response: 65Hz-24kHz +/-3dB
Nominal Impedance: 8 ohms
Sensitivity: 93dB 2.83V/1m
Cutout: ∅10.125" (257.18mm) / 10.125" x 10.125"
Recommended Power Range: 50 - 250W
Woofer: (1) 8" (203mm) Aluminum
Tweeter: (4) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes: White Paintable Grille
Height: 10.786 in (273.96 mm)
Width: 10.786 in (273.96 mm)
Depth: 5.86 in (148.84 mm)
Preconstruction Board (PCB): FXC820R PB
Flush Mount Preconstruction Board (PCBF): FXC820R PBF
