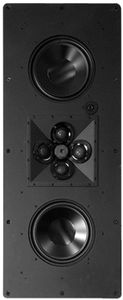

James Loudspeaker® BE Series 8" 3-Way Shallow Depth In-Wall Speaker

Model #: 806BE

At a Glance

The new 806BE in-wall reference loudspeaker features high output driver components, set into a solid aluminum baffle, coupled with James all new quad tweeter array, incorporating four 1” (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promises to deliver only the best audiophile quality sound.

WarningProposition 65 Warning for California Residents
James Loudspeaker® BE Series 8" 3-Way Shallow Depth In-Wall Speaker

Other

Sold AsEach

Specifications

Sensitivity92 dB

Styling

ColorBlack; White

Construction

Tweeter CompositionAluminum
Woofer CompositionAluminum Cone

General Specs

Product Weight (lbs.)30
Color Finish NameBlack
RMS Power Handling (Watts)300
ColorBlack
Impedance4 Ohms
Maximum Power Handling (Watts)300W
Number of Speakers1
Speaker TypeIn-Wall Speakers
Depth (in.)3.88
Height (in.)32
Width (in.)12.95
Woofer Size8"

James Loudspeaker® BE Series 8" 3-Way Shallow Depth In-Wall Speaker

Model #: 806BE
27493
Model #: 806BE
James Loudspeaker
$99,999.00

Call for Best Price

At a Glance

The new 806BE in-wall reference loudspeaker features high output driver components, set into a solid aluminum baffle, coupled with James all new quad tweeter array, incorporating four 1” (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promises to deliver only the best audiophile quality sound.

Get to know this product.

The BE-series is James Loudspeaker’s line of studio grade reference in-wall loudspeakers, designed and engineered for precision and sonic accuracy. There is nothing quite like the workmanship that goes into building these speakers; each unit is hand assembled, tested, and packaged by craftsman in Napa, California. The new 806BE in-wall reference loudspeaker features high output driver components, set into a solid aluminum baffle, coupled with James all new quad tweeter array, incorporating four 1” (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promises to deliver only the best audiophile quality sound.

Perfect for home theaters and stereo systems, these in wall speakers deliver top quality sound while saving space in any environment. The truly superior quality and design of these speakers is immediately prevalent. Equipped with a high output aluminum cone woofer and a powerful aluminum cone mid-range driver, the 806BE has an impressive 95dB sensitivity, with bass down to 45Hz, and the beryllium dome tweeters deliver the most crisp, clear high frequencies available. The sealed cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Designed for easy installation into 2x4 stud walls, 16” on center, with some additional stud framing required.

Specifications

    Frequency Response: 45Hz-40kHz +/-3dB

    Nominal Impedance: 8 ohms

    Sensitivity: 96db 2.83V/1m

    Cutout: 10.000" x 28.750"

    Recommended Power Range: 50 - 300W

    Woofer: (2) 8" (203mm) Aluminum

    Tweeter: (4) 1" (25mm) Beryllium

    Enclosure: Aircraft Marine Grade Aluminum

    Finishes: Black, White Cloth, or White Paintable Grille

    Height: 32 in (812.80 mm)

    Width: 12.95 in (328.93 mm)

    Depth: 3.875 in (98.42 mm)

    Grille Height: 32.31 in (820.67 mm)

    Grille Width: 13.26 in (336.80 mm)

    Net Weight: 30 lbs (13.61 kg)

    Preconstruction Board (PCB): 806BEPB



Specifications

General Specs

Product Weight (lbs.)30
Color Finish NameBlack
RMS Power Handling (Watts)300
ColorBlack
Impedance4 Ohms
Maximum Power Handling (Watts)300W
Number of Speakers1
Speaker TypeIn-Wall Speakers
Depth (in.)3.88
Height (in.)32
Width (in.)12.95
Woofer Size8"

Construction

Tweeter Composition:Aluminum
Woofer Composition:Aluminum Cone

Other

Sold As:Each

Specifications

Sensitivity:92 dB

Styling

Color:Black; White
