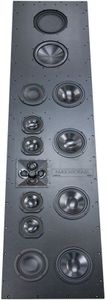

James Loudspeaker® BE Referencing Series 6" 5-Way Depth In-Wall Speaker

The new 816BE in-wall reference loudspeaker features high output driver components, set into a solid aluminum baffle, coupled with James' all new quad tweeter array, incorporating four 1" (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with four high output 8" (203mm) aluminum cone woofers, (2) 6.5" (165mm) neodymium mid-drivers, the 816BE has an impressive 102dB sensitivity with bass down to below 22Hz. A multi-element network blends the highs and lows into a smooth and ultra-wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance and suitability for outdoor/marine applications. Designed for easy installation into 2x4 stud walls, 16" on center.

Specifications

• Frequency Response: 22Hz-40kHz±3dB
• Sensitivity: 102dB 2.83V/1m
• Enclosure: Aircraft Grade Aluminum
• Finishes : Studio Black
• Height: 80.25 in (2038.35 mm)
• Width: 21 in (533.40 mm)
• Depth: 6.25 in (158.75 mm)

Nominal Impedance

• Subwoofer - 8 ohms
• Woofer - 8 ohms
• Mid-bass - 4 ohms
• Mid/High - 8 ohms

Recommended Power Range

• Subwoofer - 150-500 watts
• Woofer - 100-500 watts
• Mid-bass - 50-300 watts
• Mid/HF - 50-300 watts
